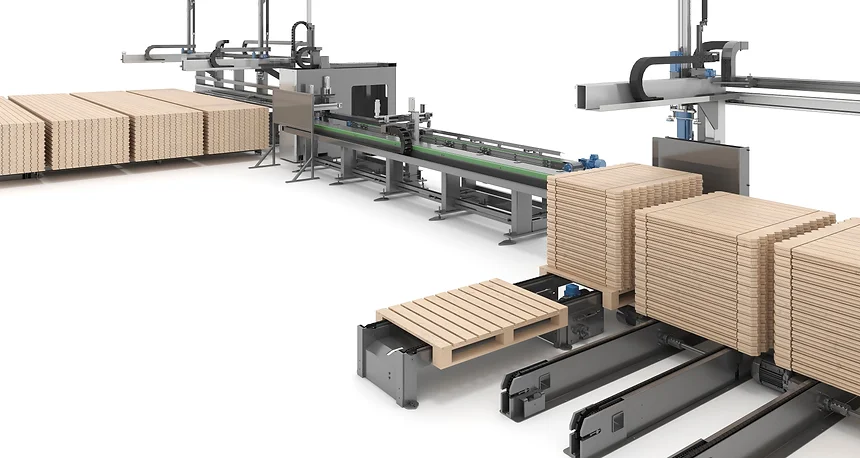

LINEAR PRINCIPLE GARDEN HOUSE ELEMENT PRODUCTION LINE FM

LINEAR PRINCIPLE GARDEN HOUSE ELEMENT PRODUCTION LINE FM

  • Notch machining station and drilling unit with easy maintenance access;

  • A chamfering machining station;

  • Automatic stacking unit (6 positions).

Price from 499'700 EUR (excl.VAT, EXW)

FDMR Provides

  • In-feed board-by-board destacker;

  • High speed linear servo pusher (1,5 sec. to home position).

Destacker & Infeed

  • Automated board-by-board destacking (with laser scanning of the stack);

  • Buffer conveyor for direct in-feed to the pusher.

Stacking Unit

  • Automatic stacking according to per-planned stacking map;

  • Automatic spacer application;

  • Stacks can be separated by project.

Processing Unit

  • Integrated material length optimization (according to the given task);

  • Flexible job list – series and singular production;

  • Easy access to toll change and maintenance;

  • Drilling, notching, cross cutting combined in one station for full "lock" processing;

  • Chamfering carried out on separate stating to improve productivity.

Work Material

  • Minimum thickness: 28mm;

  • Maximum thickness: 70mm;

  • Minimum width: 119mm;

  • Maximum width: 144mm;

  • Minimum length: 400mm;

  • Maximum length: 6100mm.
